Retaining Wall Installation In Clifton: The 2026 Engineering And Design Guide
(Note: This guide focuses specifically on residential and commercial retaining wall installation in Clifton, New Jersey, addressing local soil conditions, municipal zoning requirements, and regional structural engineering standards.)
Property owners undertaking a landscaping or civil engineering project in Clifton face unique topographical challenges. From the varying elevations near the Passaic River to the rocky, glacial till soils characteristic of Passaic County, proper earth retention is critical. A failed retaining wall does not merely look unsightly; it can lead to catastrophic structural collapse, foundation damage to neighboring properties, and severe civil liability.
Executing a long-lasting, code-compliant retaining wall installation in Clifton requires meticulous planning, precise geotechnical calculations, and adherence to modern construction standards. Whether you are managing a steep sloped backyard in the Albion Place neighborhood or designing a commercial terraced parking lot near Route 3, understanding the core components of hardscape engineering ensures your investment withstands the test of time.
Geotechnical Realities of Clifton Soil and Topography
Before placing a single block or pouring concrete, a thorough site assessment must account for Clifton's specific geological profile. The terrain across the municipality varies from flat urbanized floodplains to rolling hillsides requiring aggressive grade changes.
Local soils typically consist of a mix of glacial silts, clays, and weathered sandstone fragments. These soils present distinct geotechnical hurdles:
- High Plasticity Clays: Certain areas feature clay-heavy soils that expand significantly when saturated with water and shrink during dry summer months, exerting immense hydrostatic pressure on the back of any retaining structure.
- Variable Drainage: Subsurface water tables fluctuate based on seasonal precipitation and proximity to local drainage basins. Unmanaged groundwater is the primary cause of retaining wall failure.
- Frost Depth Vulnerability: Clifton experiences freeze-thaw cycles during winter. Frost heave can lift shallow structures out of alignment, necessitating deep, frost-protected gravel foundations.
Essential Soil Preparation Metrics
To mitigate these native soil challenges, engineering best practices require specific preparation steps:
- Excavation Down to Firm Bearing Soil: Unstable topsoil and organic matter must be completely stripped away to reach undisturbed native subgrade or compacted structural fill.
- Compaction Verification: Sub-base soils must be mechanically compacted to at least 95% Standard Proctor Density using vibrating plate compactors or trench rollers.
- Geogrid Integration: For walls exceeding three feet in height, geosynthetic reinforcement grids must be integrated into the backfill layers to tie the facing units to the stable soil mass behind the wall envelope.
Structural Typologies: Choosing the Right System
Not all retaining walls serve the same structural purpose. Selecting the appropriate system depends on wall height, aesthetic preferences, load-bearing requirements, and site geometry.
| Wall System Type | Maximum Engineered Height | Primary Material Composition | Best Suited Application | Clifton Permitting Requirement |
|---|---|---|---|---|

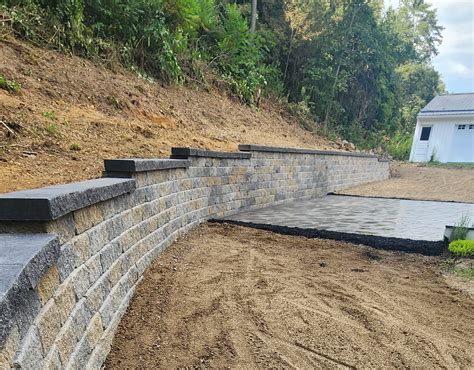

| Segmental Retaining Walls (SRW) | Up to 15-20 feet with geogrid | Interlocking concrete modular blocks | Residential slopes, driveways, garden terracing | Required if over 4 feet in height |
| Poured-in-Place Concrete | Unlimited (Custom engineered) | Reinforced structural concrete | Commercial applications, high-stress vehicle loads | Always required (Structural Engineer stamp) |
| Natural Stone Gravity Walls | 3 to 4 feet maximum | Fieldstone, granite, bluestone | Historic restorations, decorative garden beds | Generally exempt under 4 feet |
| Gabion Baskets | Up to 10-12 feet | Galvanized steel mesh filled with crushed stone | Drainage-heavy zones, contemporary landscape design | Required for commercial installations |
Gravity walls rely entirely on their own dead weight and mass to resist sliding and overturning forces, making them ideal for lower residential applications. Taller structures require segmental retaining wall systems combined with engineered geogrid layers, effectively turning the wall and the soil behind it into a single, heavy gravity mass.
Civil Engineering Retaining Walls
Step-by-Step Installation Methodology
Professional retaining wall installation follows a rigorous, sequential engineering process. Skipping any single phase compromises the structural integrity of the entire assembly.
Site Layout & Utility Locating ↓ Excavation & Trench Preparation ↓ Crushed Stone Base Installation & Leveling ↓ Base Course Placement (First Row Leveling) ↓ Drainage Core & Backfill Layering ↓ Geogrid Placement & Upper Course Stacking ↓ Cap Stone Installation & Final Grading
Phase 1: Layout and Utility Locating
Before any excavation begins, professional contractors contact the New Jersey One Call system to mark underground public utilities. The construction boundaries are then established using transit levels and mason strings to ensure correct alignment and elevation profiles.
Phase 2: Excavation and Base Trenching
A trench is excavated along the planned wall alignment. The trench width must be equal to at least three times the depth of the retaining wall block, and deep enough to accommodate both the crushed stone leveling pad and at least one buried base course block (typically 6 inches or 10% of the total wall height, whichever is greater).
Phase 3: The Foundation Pad
A crushed stone leveling pad (typically ASTM #57 stone or dense-graded aggregate) is installed in 4-inch lifts. Each lift is mechanically compacted to create a solid, free-draining foundation that prevents differential settling.
Phase 4: Setting the Base Course
The most critical step in wall installation is leveling the first course of blocks. Every block must be checked individually with a bubble level in both directions, front-to-back and side-to-side. A poorly leveled base course magnifies errors as the wall grows taller.
Phase 5: Drainage Infrastructure
Water management is non-negotiable. A perforated corrugated pipe (minimum 4-inch diameter) wrapped in geotextile filter fabric is installed behind the base course. This pipe collects groundwater and channels it safely away to daylight outlets or storm drainage systems. The entire zone directly behind the wall is filled with clean, free-draining crushed stone (at least 12 inches deep) to prevent hydrostatic buildup.
Phase 6: Stacking, Backfilling, and Cap Placement
Subsequent courses are stacked with a running bond pattern, utilizing rear lips or pins to maintain the engineered setback. Behind each course, structural backfill is placed and compacted in 8-inch lifts. Finally, coping stones are permanently secured to the top course using high-strength exterior concrete adhesive.
Municipal Regulations and Zoning Compliance in Clifton
Navigating local government requirements is a mandatory step before breaking ground in Clifton. The City of Clifton Engineering Department and Construction Code Official enforce strict guidelines regarding grading, drainage, and property lines.
Important Municipal Compliance Note: In Clifton, retaining walls that exceed four feet in height measured from the bottom of the footing to the top of the wall generally require a formal zoning permit and structural engineering drawings signed and sealed by a New Jersey licensed professional engineer. Furthermore, walls placed within utility easements or near municipal right-of-ways face strict prohibitions. Always verify property boundary surveys and setback requirements with the Clifton Building Department to avoid costly stop-work orders or mandatory tear-down directives.
Pros and Cons of Common Retaining Wall Materials
Evaluating material choices requires balancing upfront installation costs, aesthetic goals, and long-term maintenance requirements.
Segmental Concrete Blocks
- Pros: Highly engineered for consistency, interlocking design simplifies alignment, integrated setback creates structural batter, available in numerous textures and earth-tone colors mimicking natural stone.
- Cons: Uniform appearance may look too manufactured for historic properties; lower-quality blocks can suffer from freeze-thaw surface scaling if de-icing salts are applied directly to them.
Natural Stone
- Pros: Timeless aesthetic appeal, incredible longevity, exceptional durability against weather elements, unique character that enhances high-end property values.
- Cons: Significantly higher material and labor costs due to the specialized masonry skills required for dry-stacking or mortar laying; irregular shapes make precise engineering calculations more complex.
Timber (Pressure-Treated Wood)
- Pros: Lower initial installation cost, natural blending with wooded residential landscapes, easier to cut and modify on-site.
- Cons: Finite lifespan (typically 15 to 25 years even with heavy treatment), vulnerable to rot, insect damage, and bowing under heavy soil loads; not recommended for walls over 3 feet.
Frequently Asked Questions
Do I need a permit for a retaining wall in Clifton?
Yes, any retaining wall exceeding four feet in height in Clifton requires a building permit accompanied by engineered drawings. Even walls under four feet must comply with local zoning ordinances regarding drainage and property lines.
How do I prevent water from pushing my retaining wall over?
Preventing hydrostatic pressure requires installing a comprehensive drainage system consisting of a perforated drain pipe, clean crushed stone backfill behind the wall, and weep holes if constructing a poured concrete wall.
What is the purpose of geogrid in retaining wall installation?
Geogrid is a high-strength synthetic mesh laid horizontally into the soil behind the wall. It locks the facing blocks to the stable earth behind it, creating a reinforced composite gravity mass that resists lateral soil pressures.
Can I build a tall retaining wall myself as a DIY project?
While low decorative garden walls under two feet are suitable for DIY landscaping, walls exceeding three feet or supporting structures, driveways, and slopes should always be installed by certified hardscape professionals to ensure structural safety.
How long does a professionally installed retaining wall last?
A segmental concrete block wall or poured concrete wall built on a properly compacted crushed stone foundation with adequate drainage will last anywhere from 50 to over 100 years with minimal maintenance.
Securing Your Property with Expert Hardscape Solutions
Investing in professional retaining wall installation protects your Clifton property against soil erosion, reclaims unusable sloped land, and dramatically enhances your landscape architecture. Do not leave structural stability to chance. Contact a licensed Clifton contractor today to schedule a comprehensive geotechnical site evaluation, secure proper municipal permits, and engineer a durable earth-retention solution tailored to your property.
